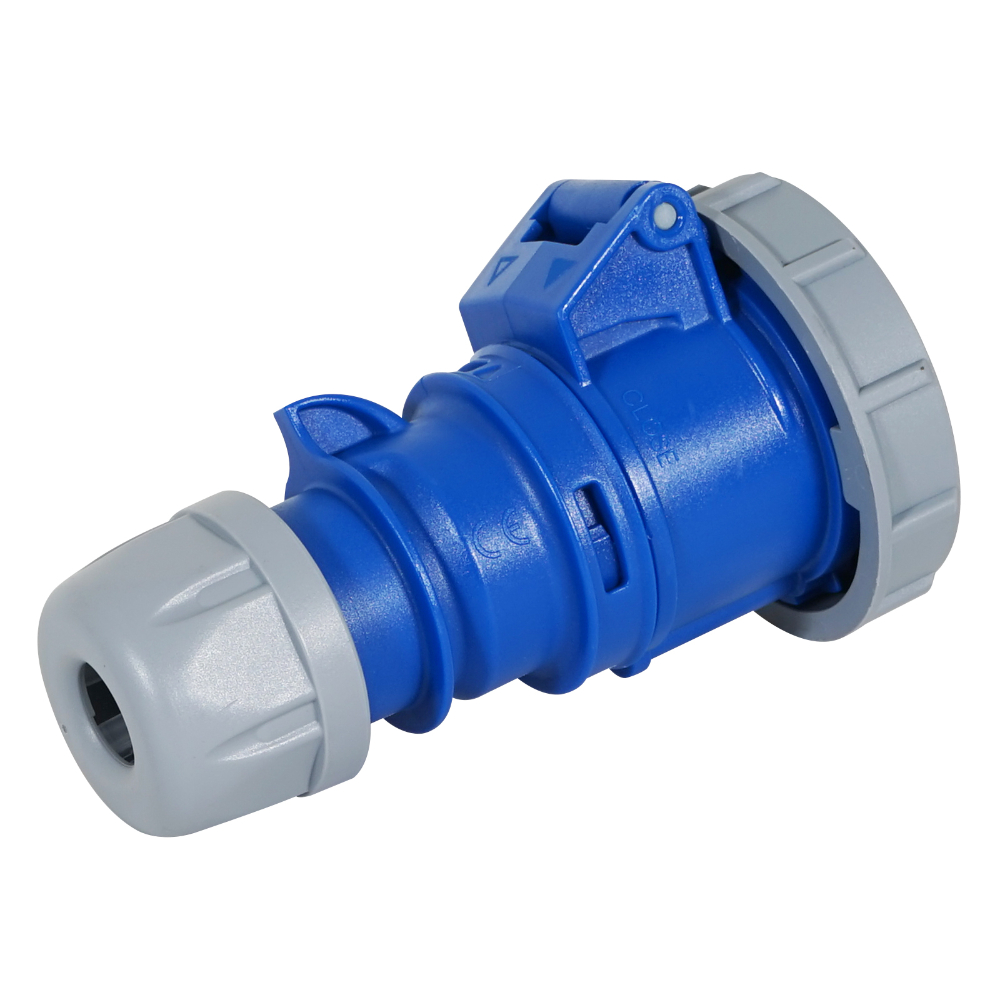

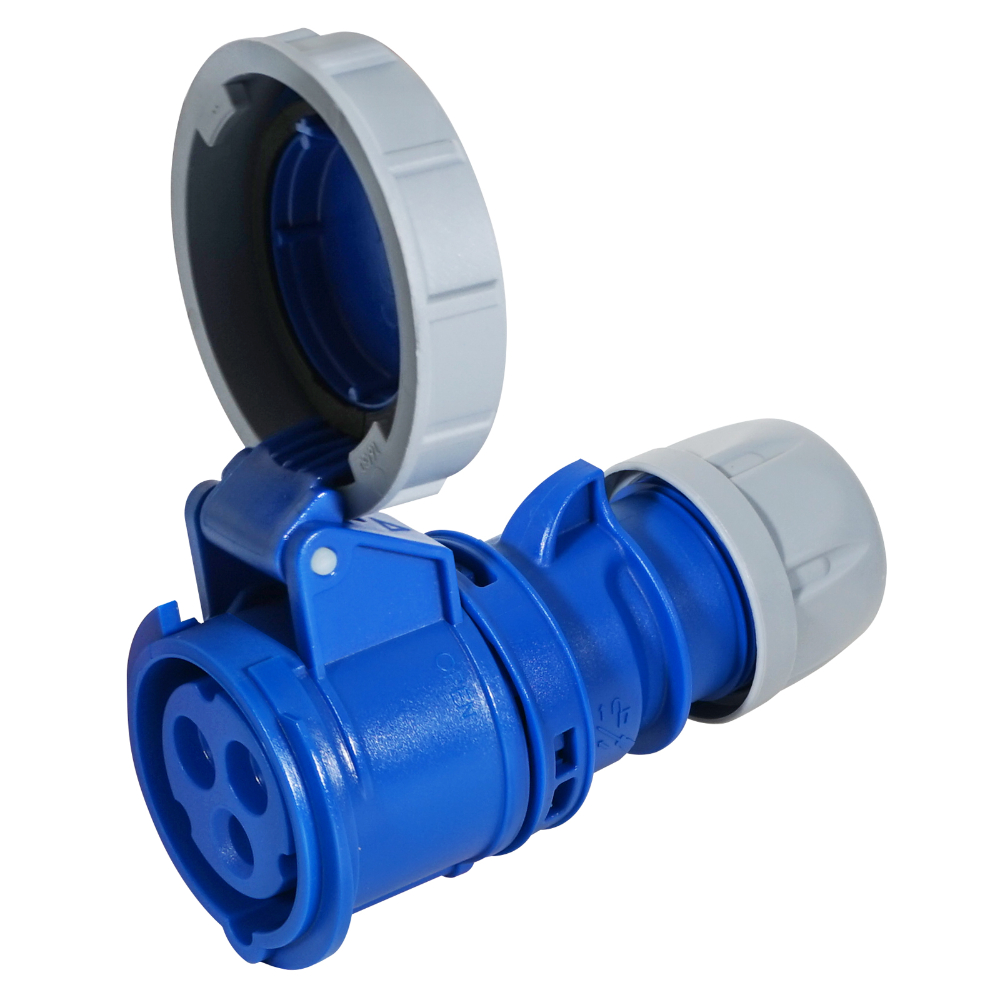

PCE 3 Poles 6h 16A 230V Connector IP67, Dimensions: 132 x 78mm.

Name: PCE 3 Poles 6h 16A 230V Connector IP67, Dimensions: 132 x 78mm.
SKU: PC/2132-6
Rating: 0.0 (0 reviews)

Product Code :
PC/2132-6

Brand :
PCE

In Stock

Description

Type: Connector (Shark)

Rated Current (A): 16

Voltage (V): 230

No. of Poles: 3 (2P+PE)

Clock-Position: 6h

Degree of Protection: IP67

Frequency (Hz): 50/60

Contacts: Brass

Connection Technology: Screw Terminals

Angle of Plug: Straight

Cable Entry: Gland Nut

Contact Material: CuZn

Identification Color: Blue

Material: Plastic

Warranty: 1 Year

Brand: PCE

Country of Origin: Austria

Now:
AED 63.00
Inclusive of VAT

Quantity:

Wishlist

PCE 3 Poles 6h 16A 230V Connector IP67, Dimensions: 132 x 78mm.

1 Year Warranty

Shipping Details

Location
Standard Delivery:

AED 32.00

Estimated delivery time:

2 days

You can also visit one of our stores to buy this item

Warehouse

Deira Showroom

Sharjah Showroom

Safa Showroom

Overview
Specifications
Reviews

Highlights

PCE Blue 3 Poles 6h 16A 230V Connector IP67, Dimensions: 132 x 78mm. 1 Year Warranty.

Product_spec
TYPE	INDUSTRIAL SOCKET
CHARACTER	CONNECTOR
VOLTAGE(V)	230
CURRENT(A)	16
FREQUENCY (Hz)	50/60
POLES	3
DESC1	FEMALE
DESC2	6H
BRAND NAME	PCE

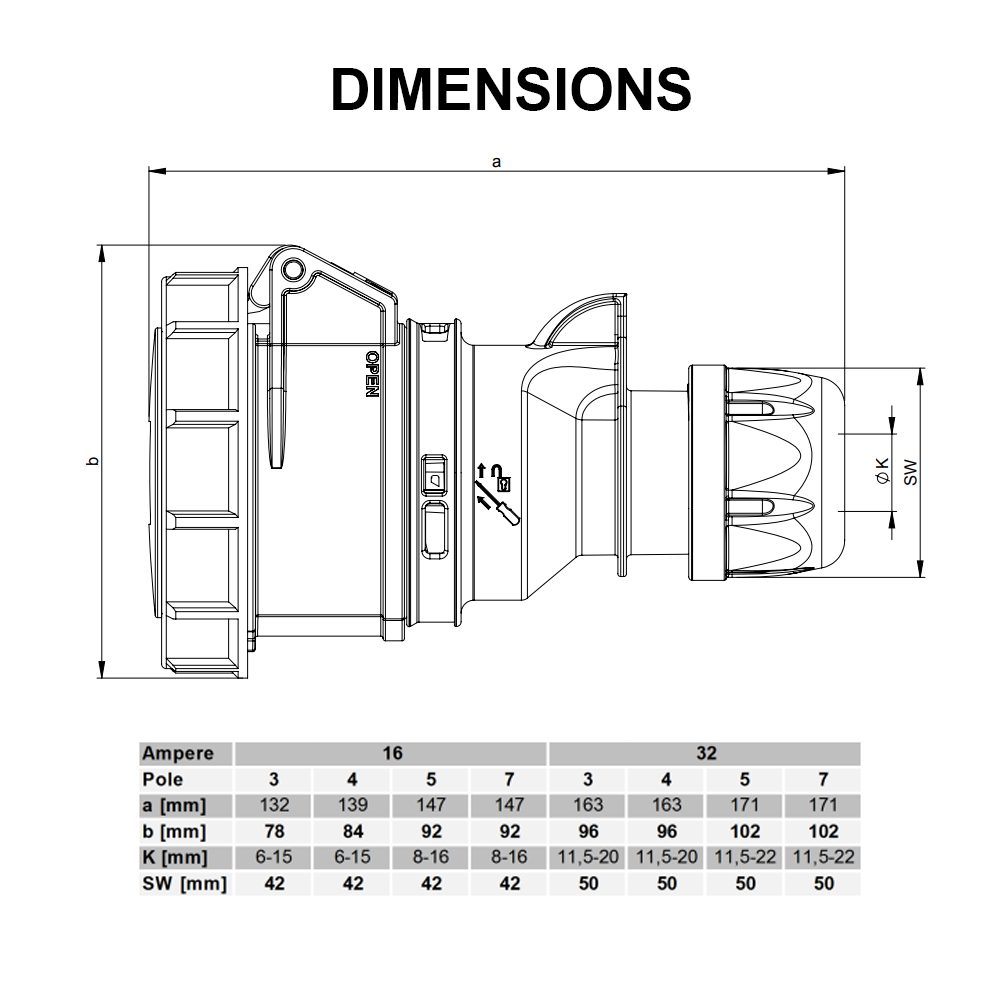

Measurements
DIMENSIONS [mm]	132 x 78
NET WEIGHT PER PIECE [kg]	0.155
