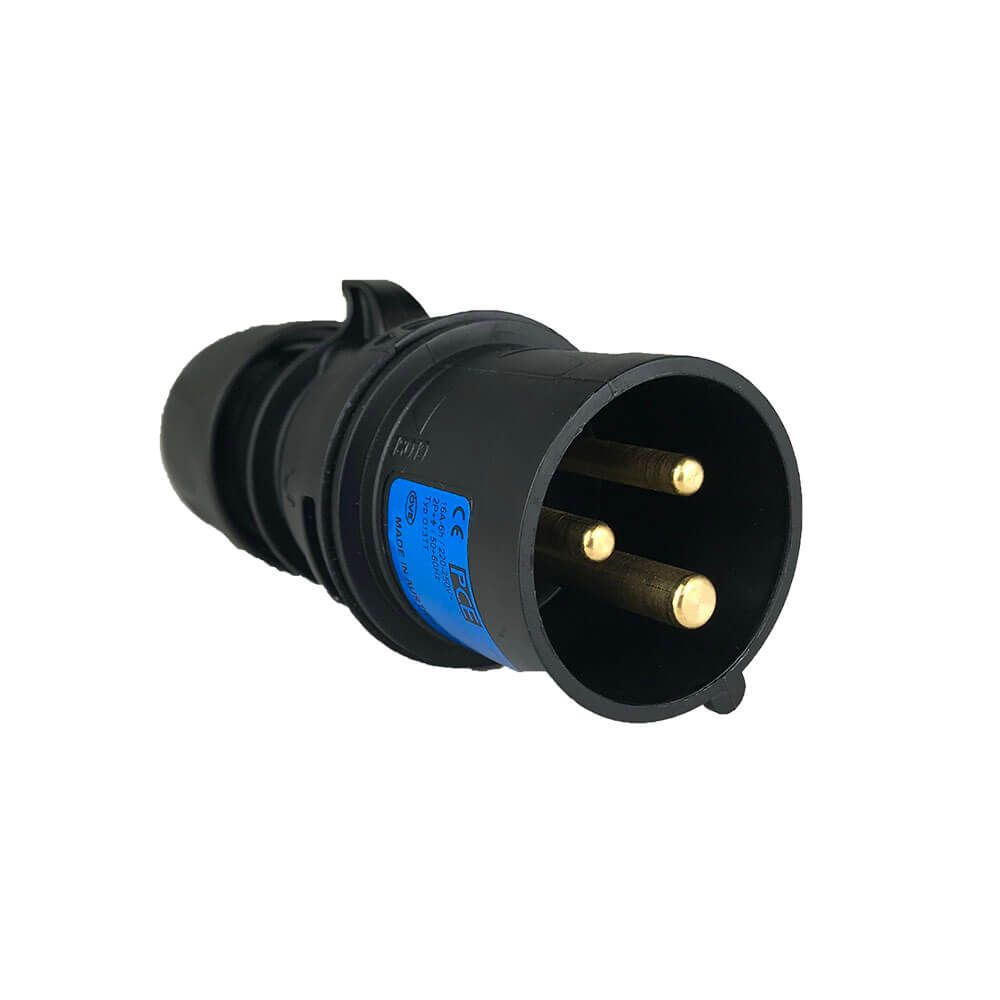

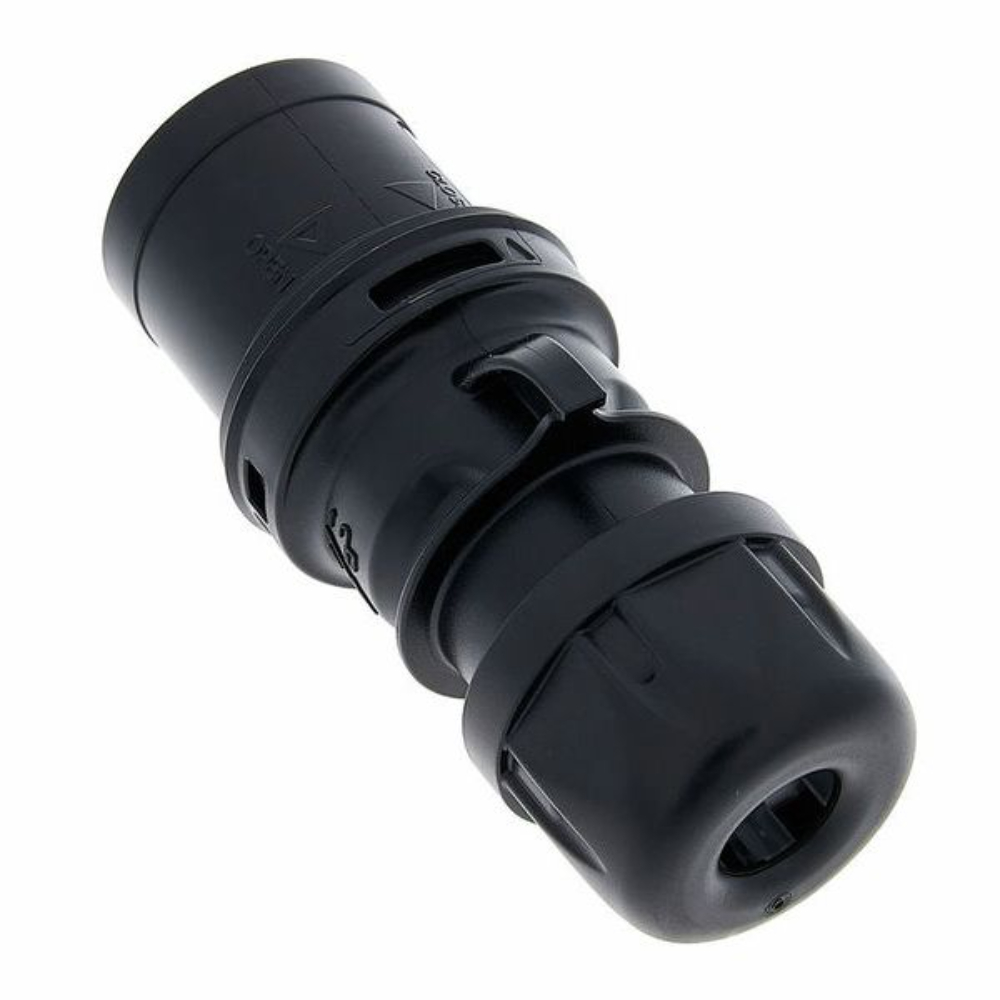

PCE Black 3 Poles 6h 16A 230V Plug IP44 Screwless Terminal, Dimension: 122 x 86 x 47mm.

Name: PCE Black 3 Poles 6h 16A 230V Plug IP44 Screwless Terminal, Dimension: 122 x 86 x 47mm.
SKU: PC/013-6TTX
Rating: 0.0 (0 reviews)

Product Code :
PC/013-6TTX

Brand :
PCE

In Stock

Description

Type: Plug (Shark)

Rated Current (A): 16

Voltage (V): 230

No. of Poles: 3

Clock Hour Position (h): 6

Degree of Protection: IP44

Frequency (Hz): 50/60

Cable Entry: Gland Nut

Contact Material: CuZn

Angle of Plug: Straight

Identification Color: Black

Housing Material: Plastic

Contacts: Brass

Connection Technology: Screwless Terminal

Ambient Temperature: -25 – 40 °C

Temperature Resistance: -25 – 80 °C

Warranty: 1 Year

Brand: PCE

Country of Origin: Austria

Now:
AED 31.00
Inclusive of VAT

Quantity:

Wishlist

PCE Black 3 Poles 6h 16A 230V Plug IP44 Screwless Terminal, Dimension: 122 x 86 x 47mm.

1 Year Warranty

Shipping Details

Location
Standard Delivery:

AED 32.00

Estimated delivery time:

2 days

You can also visit one of our stores to buy this item

Deira Showroom

Sharjah Showroom

Safa Showroom

Overview
Specifications
Reviews

Highlights

PCE Black 3 Poles 6h 16A 230V Plug IP44 Screwless Terminal, Dimension: 122 x 86 x 47mm. 1 Year Warranty.

Product_spec
TYPE	TURBO SHARK PLUG
CHARACTER	SPLASHPROOF
VOLTAGE(V)	230
CURRENT(A)	16
SERIAL NUMBER	PC/013/6TTX
PIN	3 POLES
DESC1	SCREWLESS CONNECTION TECHNOLOGY
DESC2	K_CABLE 6-15MM. WIRE FLEXIBLE: 1-2.5MM
DESC3	CONTACTS: BRASS
BRAND NAME	PCE
USED FOR	INDUSTRY, AGRICULTURE, COMMERCE

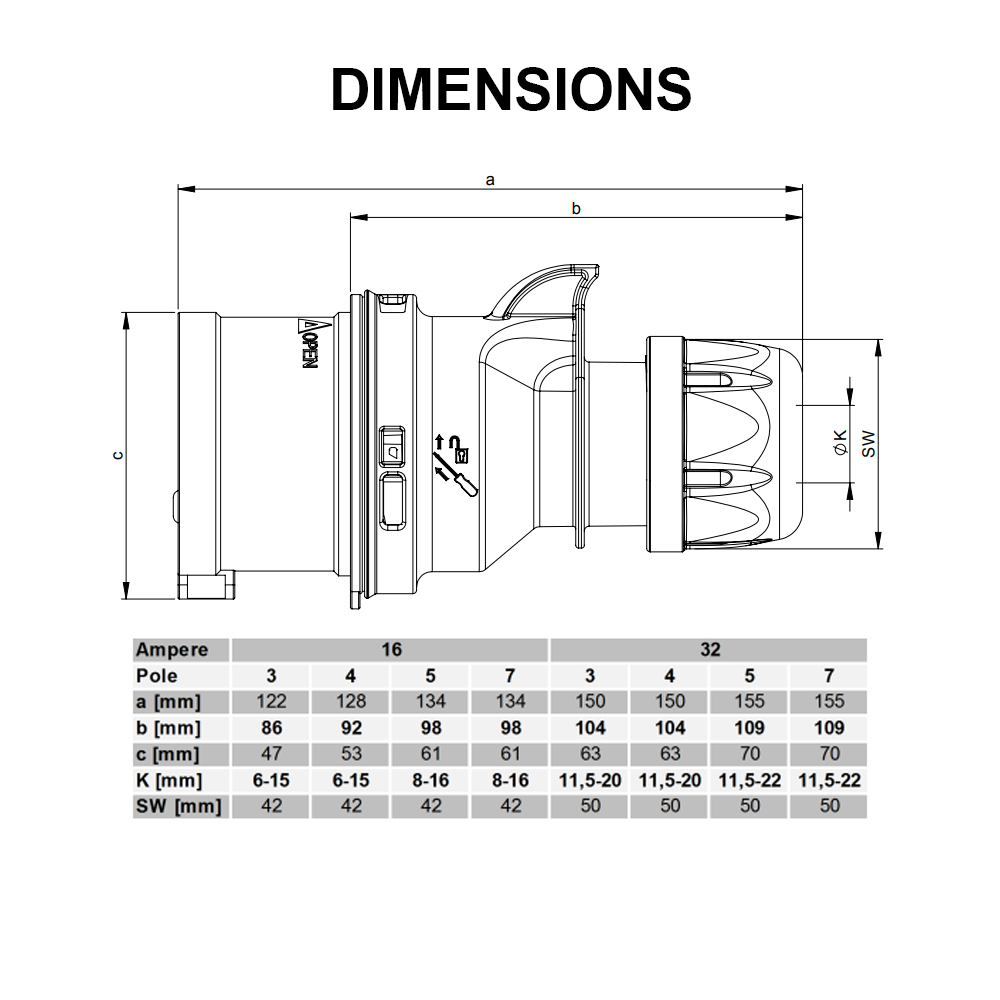

Measurements
DIMENSIONS [mm]	122 x 86 x 47
NET WEIGHT PER PIECE [kg]	0.110
