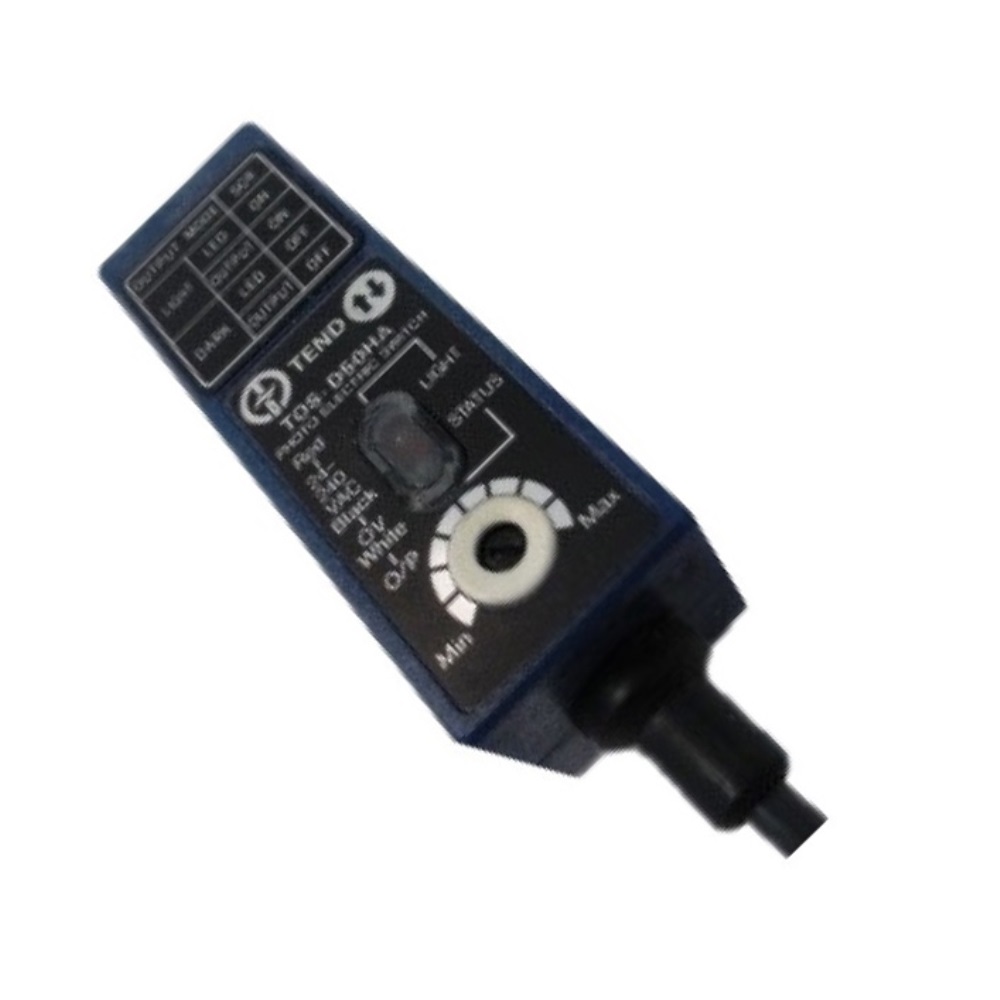

Real Tend AC SPC 110-220VAC Horizontal Photo-Electric Switch, Diffuse Reflection Type, Detecting Distance: 50cm., Detectable Object: Opaque Materials (20 mm. max) Small Volume Easy Mounting Secret & Waterproof with 1 Year Warranty

Name: Real Tend AC SPC 110-220VAC Horizontal Photo-Electric Switch, Diffuse Reflection Type, Detecting Distance: 50cm., Detectable Object: Opaque Materials (20 mm. max) Small Volume Easy Mounting Secret & Waterproof with 1 Year Warranty
SKU: RL/TOSD50HA
Rating: 0.0 (0 reviews)

Product Code :
RL/TOSD50HA

Brand :
TEND

In Stock

Description

Type: Photo-Electric Switch - Horizontal

Rated Voltage: 110VAC - 220VAC ±10%

Method of Detection: Diffuse Reflection Type

Detecting Distance: 50cm.

Mounting Direction: Horizontal

Power Consumption: 4 mA max

Detectable Object: Opaque materials (20 mm max)

Directional Angle: 3 - 10

Operating State (SCR): DARK ON

External Interference Light (Sunlight/ Incan Lamp): (20,000 lux. max) / (10,000 lux. max)

Response Time: 25 m. sec. Max.

Operating Indicator: Light is incident (RED), Stable Range Indication (GREEN)

Current Output: 100 mA

Light: Interfared

Ambient Temperature (Operating/Storage): -25 to 55°C / -40 to 70°C

Humidity (Operating/Storage): 45 to 85% RH / 35 to 95% RH

Cable Length: 2m

Brand: Real Tend

Country of Origin: Taiwan

Features:

Operation-stabilizing indicator lamp makes it easy to adjust.
Optimum optical.
All AC Series are equipped with sensitivity adjusters.
Built-in amplifier may switch 100mA loads.
Good noise immunity.
PC case is heat-and strike-resistant; glass lens heat-and chemical (acid/alkali - resistant.)
and short-circuit protecting circuit. In case of overloading, output will go off automatically and then switching to normal operation.

Now:
AED 400.00
Inclusive of VAT

Directional :

HorizontalHorizontal

Quantity:

Wishlist

Real Tend AC SPC 110-220VAC Horizontal Photo-Electric Switch, Diffuse Reflection Type, Detecting Distance: 50cm., Detectable Object: Opaque Materials (20 mm. max) Small Volume Easy Mounting Secret & Waterproof with 1 Year Warranty

1 Year Warranty

Shipping Details

Location
Standard Delivery:

AED 32.00

Estimated delivery time:

2 days

You can also visit one of our stores to buy this item

Deira Showroom

Sharjah Showroom

Safa Showroom

Overview
Specifications
Reviews

Highlights

Real Tend AC SPC 110-220VAC Horizontal Photo-Electric Switch, Diffuse Reflection Type, Detecting Distance: 50cm., Detectable Object: Opaque Materials (20 mm. max) Small Volume Easy Mounting Secret & Waterproof with 1 Year Warranty.

Product_spec
TYPE	SPC110/220V HORIZONTAL PHOTO SWITCH
VOLTAGE(V)	110-220V
BRAND NAME	REAL TEND
FAMILY NAME	TOSD50HA

Measurements
LENGTH [M]	CABLE: 2
