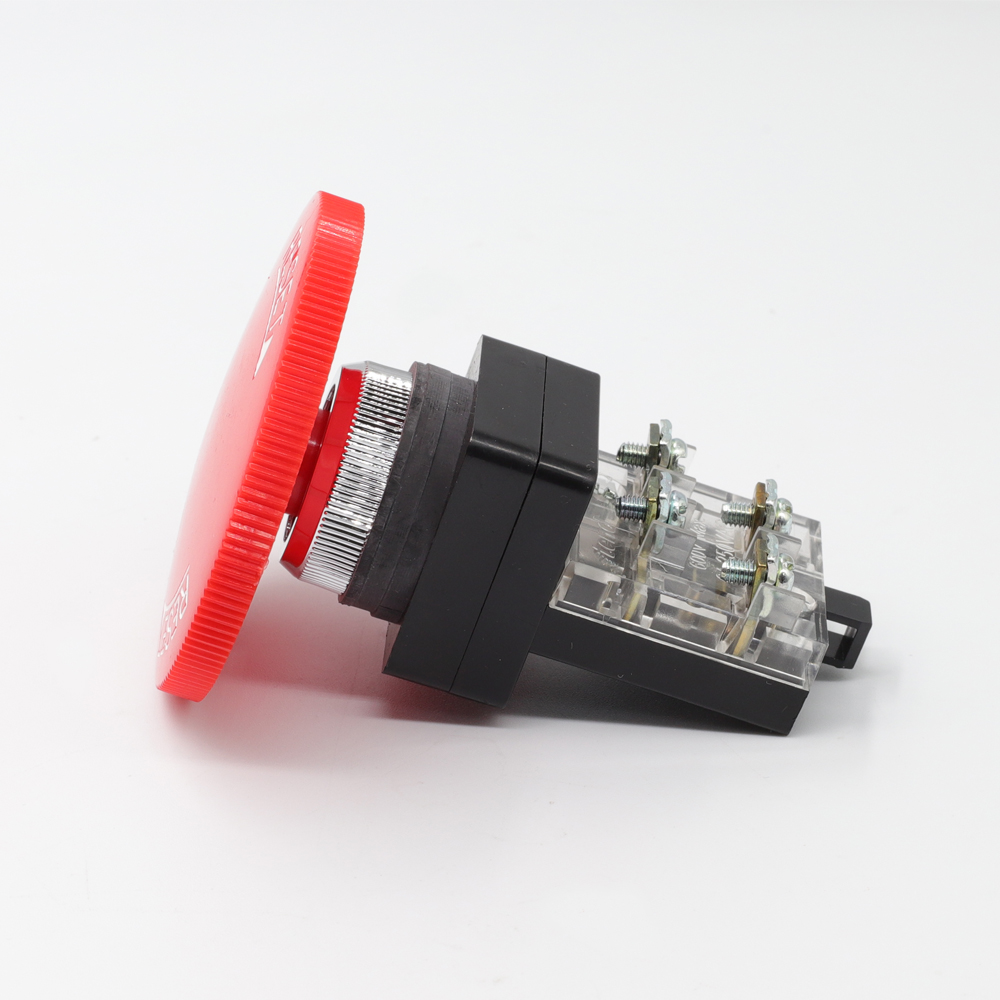

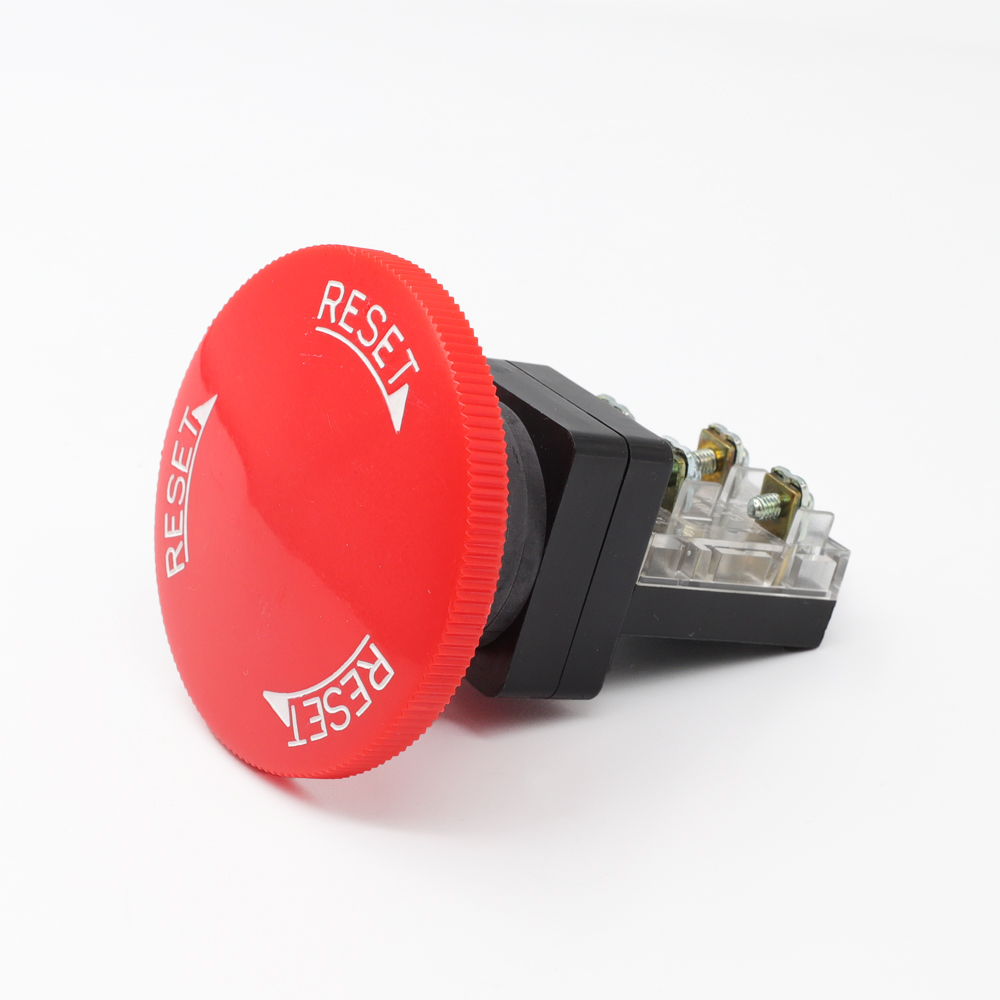

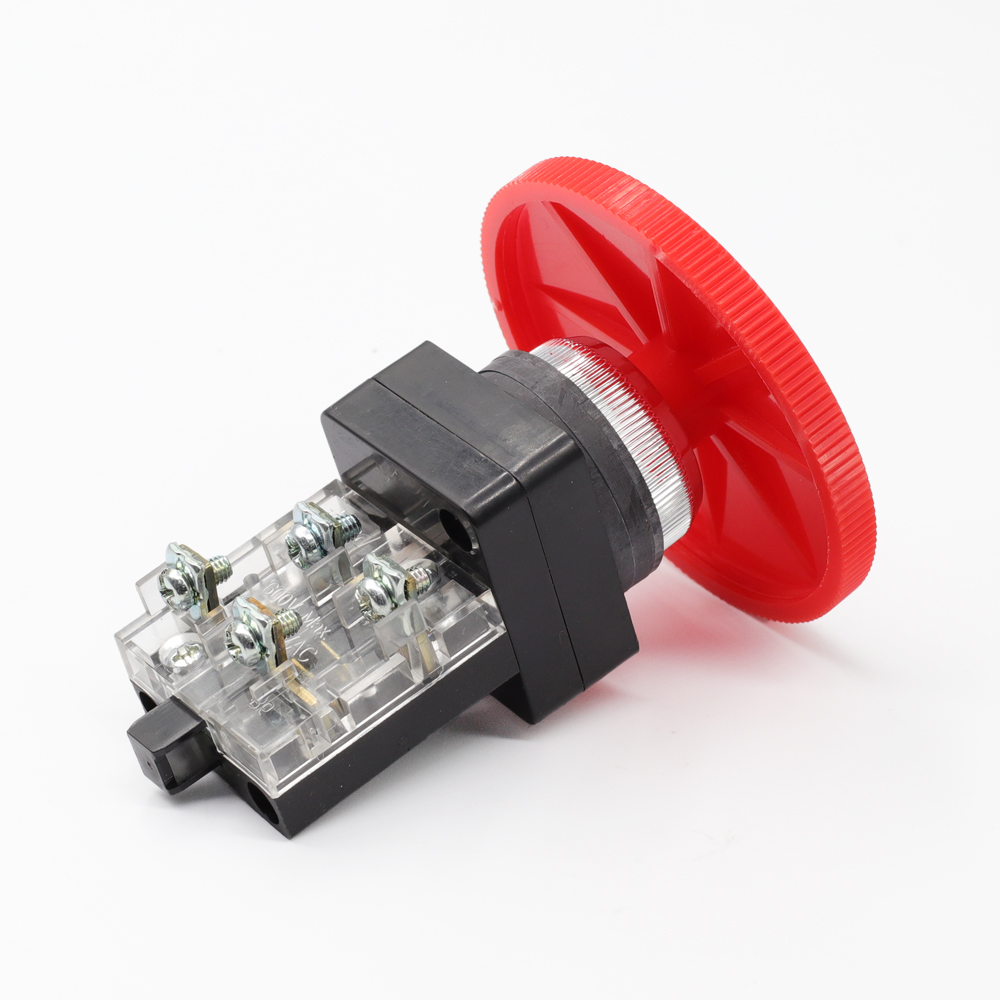

Real Tend Red 25mm. Push Lock (Large Head) 6A 250V Push Button Switch 1a1b (NO-NC)

Name: Real Tend Red 25mm. Push Lock (Large Head) 6A 250V Push Button Switch 1a1b (NO-NC)
SKU: RL/TBKL251
Rating: 0.0 (0 reviews)

Product Code :
RL/TBKL251

Brand :
TEND

In Stock

Description

Type: Push Button Switch

Voltage (V): 250AC

Alternate Current Rating (A): 6

Mounting Hole: ∅25 m/m

Head Color: Red

Brand: Real Tend

Country of Origin: Taiwan

Specification:

Dielectric Strength: AC220V for duration of one minute

Insulation Resistance: Over 100 mΩ @ DC500 V

Temperature Rise:

At Contacts Less than 30 degrees.
At Terminals Less than 25 degrees.
@ Ambient temperature of 40°C, and a continuous current of 10 amperes

Contact Resistance: Less than 30 mΩ

Ambient Temperature Allowable: -20°C ~ 60°C

Now:
AED 63.00
Inclusive of VAT

Quantity:

Wishlist

Real Tend Red 25mm. Push Lock (Large Head) 6A 250V Push Button Switch 1a1b (NO-NC)

1 Year Warranty

Shipping Details

Location
Standard Delivery:

AED 25.00

Estimated delivery time:

2 days

You can also visit one of our stores to buy this item

Deira Showroom

Sharjah Showroom

Safa Showroom

Overview
Specifications
Reviews

Highlights

Real Tend Red 25mm. Push Lock (Large Head) 10A 250V Push Button Switch 1a1b (NO-NC) with 1 Year Warranty.

Product_spec
TYPE	RED PUSH BUTTON SWITCH LONG
VOLTAGE(V)	250
CURRENT(A)	6
BRAND NAME	REAL TEND
FAMILY NAME	TBKL251

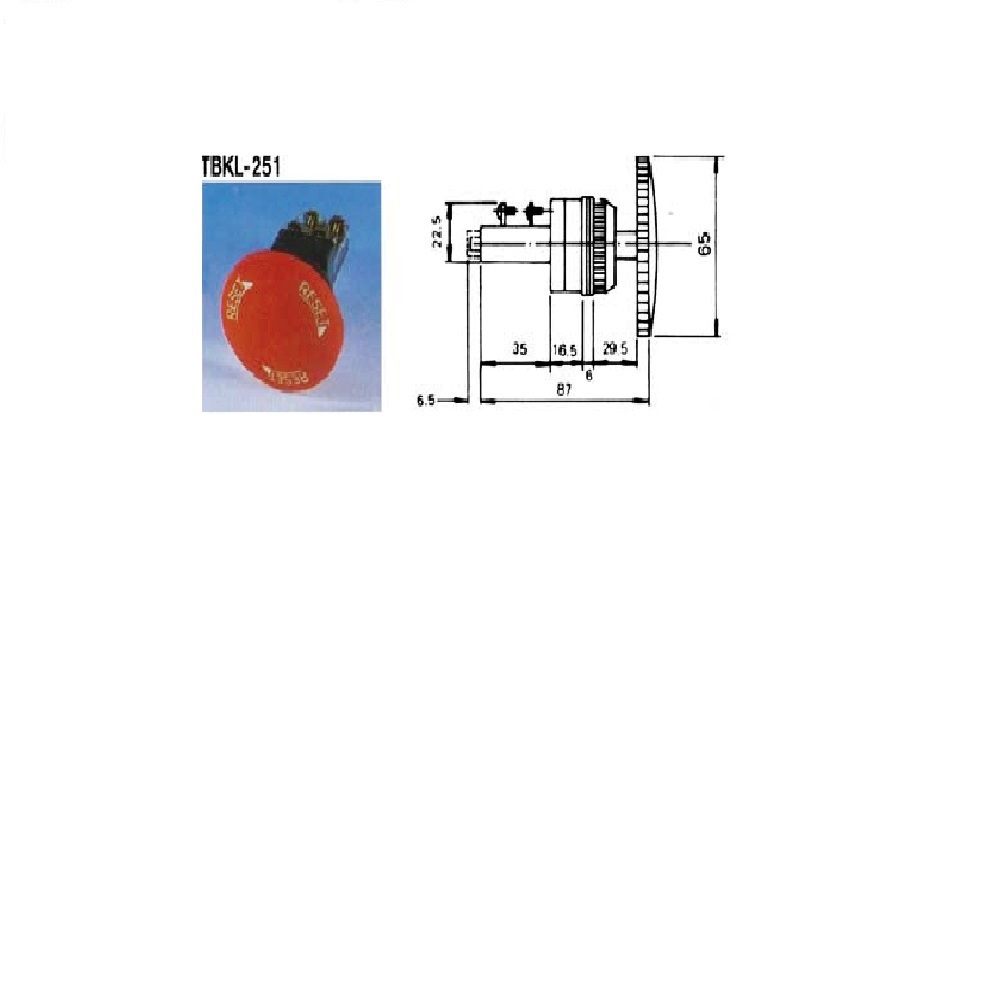

Measurements
DIMENSIONS [mm]	L=87; Ø=65
